Battlepod robot project was created by Szpectre

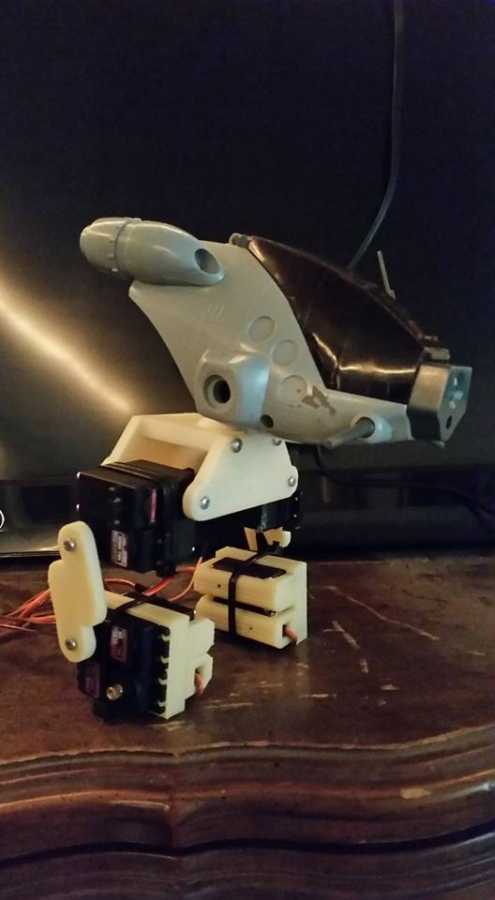

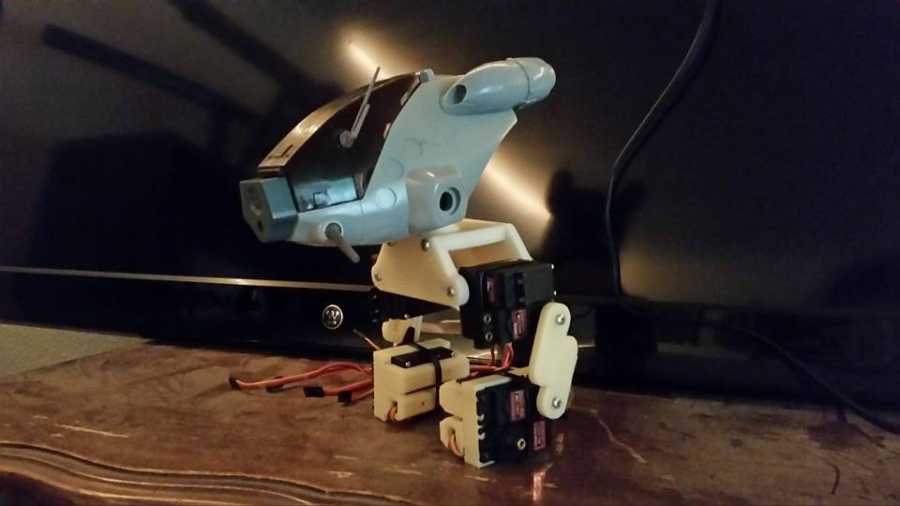

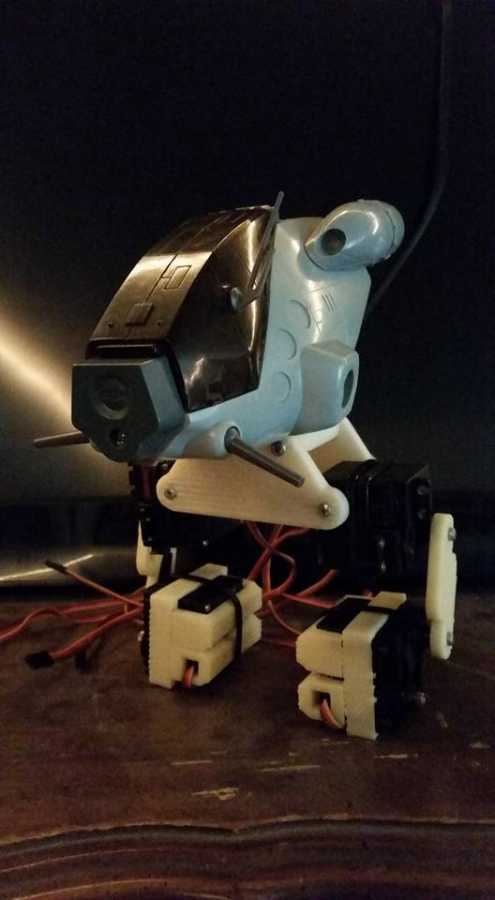

Working on a little something to bring to Comic Con (HOPEFULLY) this year. At this point, the legs are about 2/3 done. I need to add one more tier of servos, then the feet (which will house the batteries) and the legs will be completed. All the rest of the electronics will be housed in the body, and it will all be controlled by remote. I got the idea from the Project Biped website, but decided to make some adjustments to the computer side of it.

When finished, it will be able to walk in any direction I want it to, as well as be self balancing. Should be fine on flat surfaces.






- Mike
Last edit: 4 years 10 months ago by Szpectre.
5 years 3 weeks ago #21678
Attachments:

Please Log in or Create an account to join the conversation.

  • SIGHUP
  • SIGHUP's Avatar
  • Offline
  • Administrator
  • Administrator
  • Admin this!
  • Posts: 1089
  • Thank you received: 37

Replied by SIGHUP on topic Battlepod self balancing robot

Wow, that's pretty darn clever. Any videos? Or just pictures? Remote control?
--David Pena
SIGHUP
www.robotechx.com - a fandom based site | RIP Carl Macek (1951-2010)
5 years 3 weeks ago #21679

Please Log in or Create an account to join the conversation.

  • Szpectre
  • Szpectre's Avatar Topic Author
  • Offline
  • Micronian
  • Micronian
  • Posts: 29
  • Thank you received: 5

Replied by Szpectre on topic Battlepod robot project

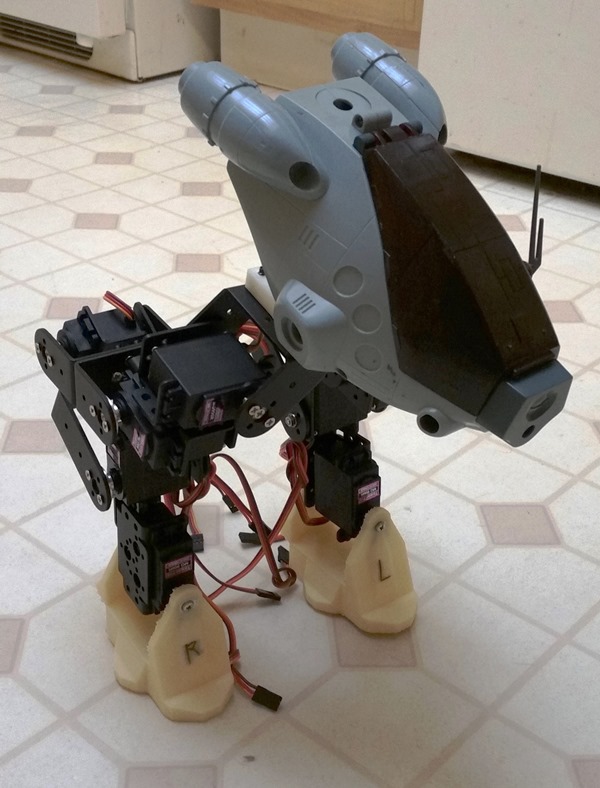

Getting closer to completion. The wiring is rough, and I still need to tighten up all the loose bits, but its getting there. I dont know how many times I have changed the leg configuration now.


- Mike
Last edit: 4 years 8 months ago by Szpectre.
4 years 10 months ago #22027
Attachments:

Please Log in or Create an account to join the conversation.

  • SIGHUP
  • SIGHUP's Avatar
  • Offline
  • Administrator
  • Administrator
  • Admin this!
  • Posts: 1089
  • Thank you received: 37

Replied by SIGHUP on topic Battlepod robot project

Progress is good.
--David Pena
SIGHUP
www.robotechx.com - a fandom based site | RIP Carl Macek (1951-2010)
4 years 10 months ago #22077

Please Log in or Create an account to join the conversation.

  • Szpectre
  • Szpectre's Avatar Topic Author
  • Offline
  • Micronian
  • Micronian
  • Posts: 29
  • Thank you received: 5

Replied by Szpectre on topic Finally takes its first steps

After burning out a few servos, and continually redesigning this thing for optimization/stabilization/efficiency, today the Battlepod took its first steps. However it is still far from finished.

Now I just need to find another arm cannon and the gun located on top.

- Mike
The following user(s) said Thank You: Alpha Bravo
Last edit: 4 years 10 months ago by Szpectre.
4 years 10 months ago #22188

Please Log in or Create an account to join the conversation.

  • Posts: 1608
  • Thank you received: 603

Replied by Alpha Bravo on topic Finally takes its first steps

now that is cool
"Offers that are selected that the deposit paid the amount that we do not decide, or the pool, sipping mulled wine, and in addition you can play table tennis, there is one drawback, I do not have rights." - random spambot (translated)
4 years 10 months ago #22192

Please Log in or Create an account to join the conversation.

  • Szpectre
  • Szpectre's Avatar Topic Author
  • Offline
  • Micronian
  • Micronian
  • Posts: 29
  • Thank you received: 5

Replied by Szpectre on topic Battlepod robot project

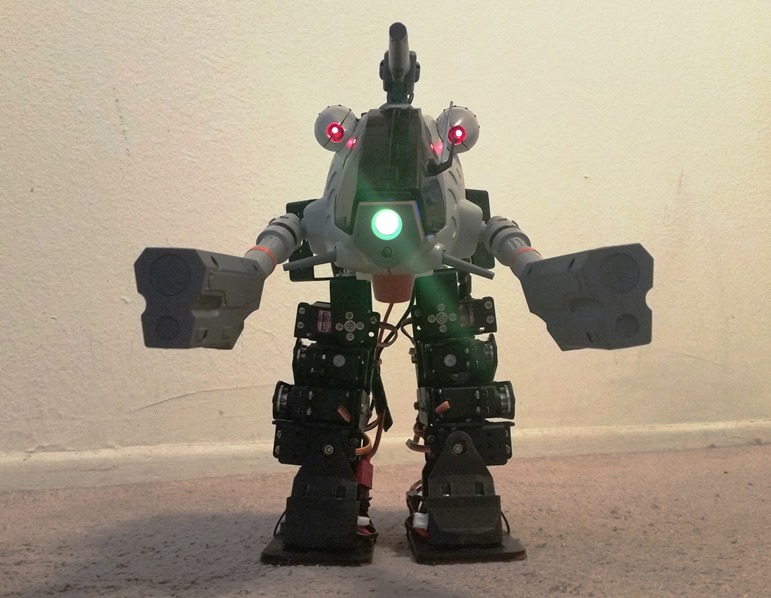

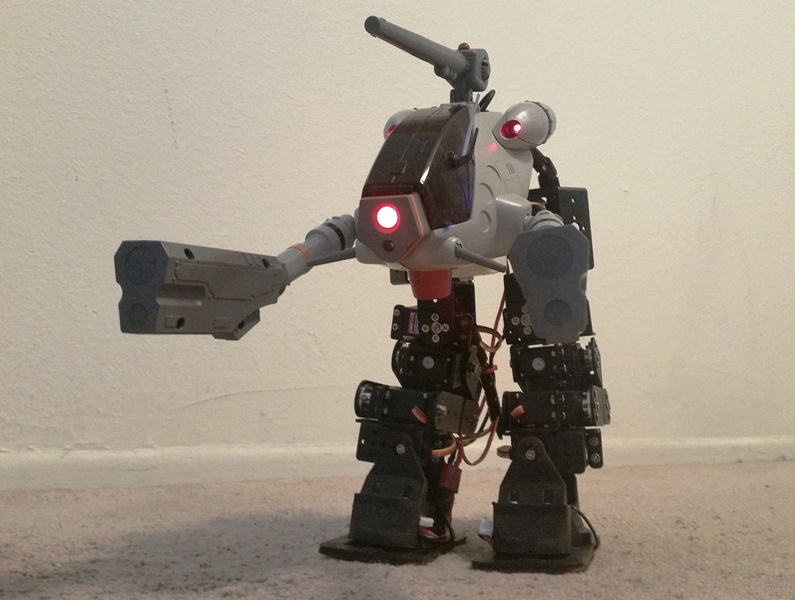

Just added bluetooth controls to it, as well as a paint job, which is currently in progress. Now to add some fine details.

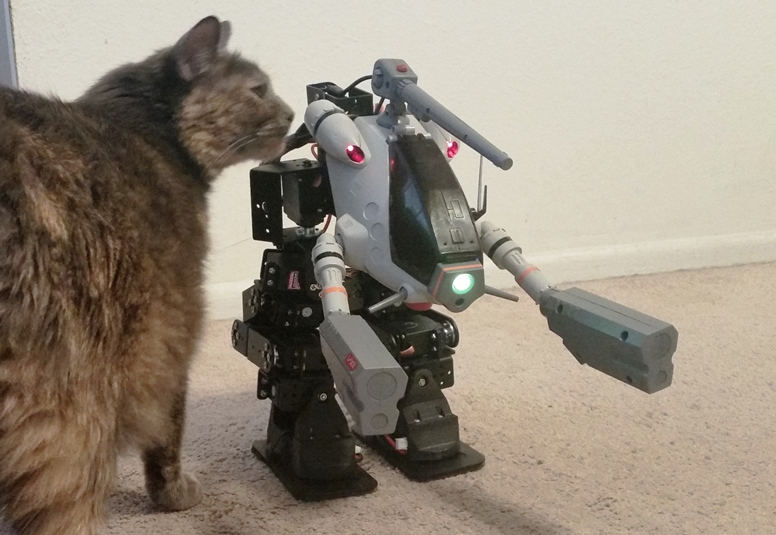

Tedcat checking it out.
- Mike
The following user(s) said Thank You: Alpha Bravo
Last edit: 4 years 8 months ago by Szpectre.
4 years 8 months ago #22943
Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 4616
  • Thank you received: 100

Replied by MEMO1DOMINION on topic Battlepod robot project

PROGRESS IS COMING ALONG. LOVE IT!

CAN'T WAIT TO SEE IT AT COMIC CON.
"IF IT DOESN'T EXIST...BUILD IT"
4 years 8 months ago #22967
